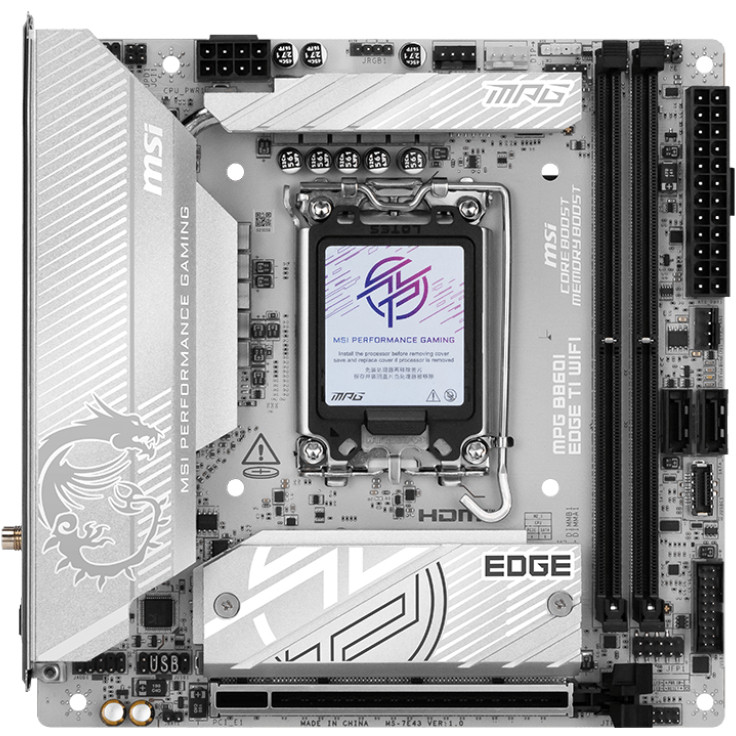

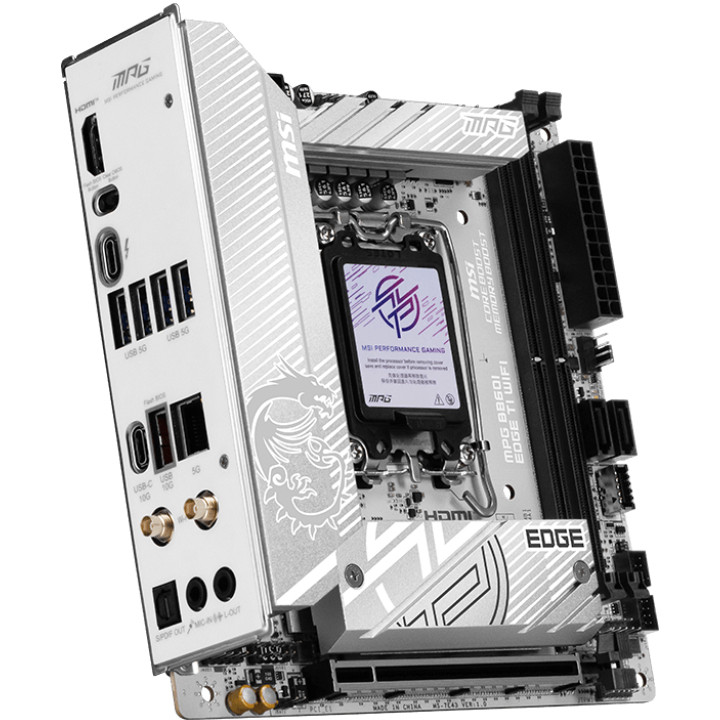

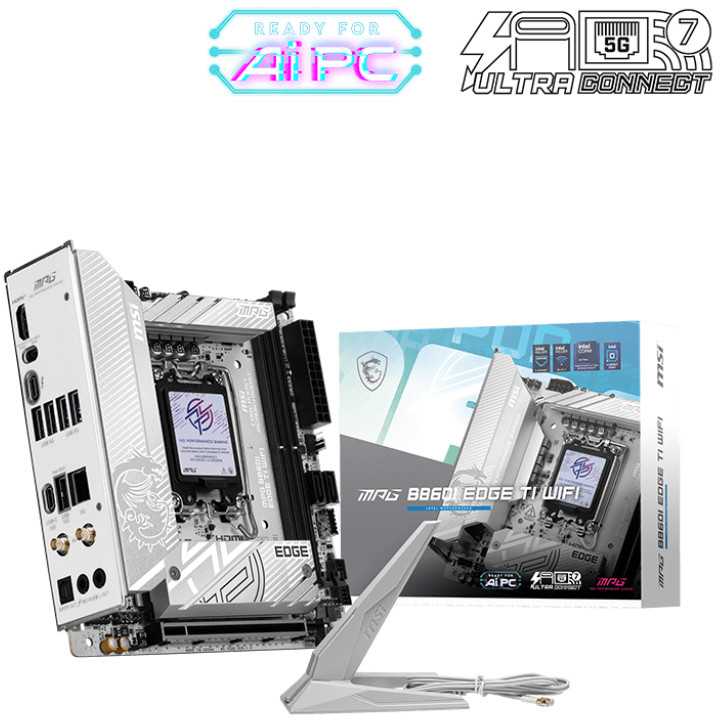

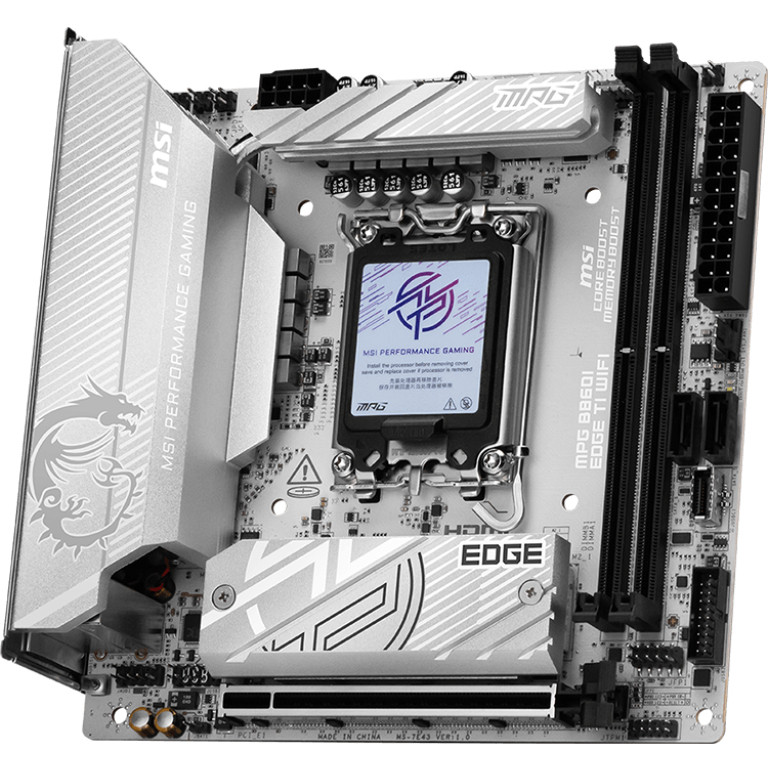

MSI MPG B860I EDGE TI WIFI. Prozessorhersteller: Intel, Prozessorsockel: LGA 1851 (Socket V1), Kompatible Prozessoren: Intel Core Ultra (Series 2). Unterstützte Arbeitsspeicher: DDR5-SDRAM, RAM-Speicher maximal: 128 GB, Arbeitsspeicher Typ: DIMM. Unterstützte Speicherlaufwerk-Schnittstellen: M.2, SATA, Unterstützte Speicherlaufwerke: HDD & SSD, RAID Level: 0, 1. Ethernet Schnittstellen Typ: 5 Gigabit Ethernet, Top WLAN-Standard: Wi-Fi 7 (802.11be), WLAN-Standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 7.... Komponente für: PC, Motherboardformfaktor: mini ITX, Motherboard Chipsatz Familie: Intel
Prozessor
Prozessorhersteller: Intel
Prozessorsockel: LGA 1851 (Socket V1)
Kompatible Prozessoren: Intel Core Ultra (Series 2)
Speicher
Unterstützte Arbeitsspeicher: DDR5-SDRAM
Anzahl der Speichersteckplätze: 2
Arbeitsspeicher Typ: DIMM
Speicherkanäle: Zweikanalig
ECC-Kompatibilität: Nicht-ECC
RAM-Speicher maximal: 128 GB
Feature: Unbuffered Speicher
Speicher-Controller
Unterstützte Speicherlaufwerke: HDD & SSD
Unterstützte Speicherlaufwerk-Schnittstellen: M.2, SATA
Feature: RAID-Unterstützung
RAID Level: 0, 1
Interne E/A-Anschlüsse
Anzahl USB 2.0 Schnittstellen: 2
USB 3.2 Gen 1 (3.1 Gen 1) Anschlüsse: 2
USB 3.2 Gen 2 (3.1 Gen 2) Anschlüsse: 1
SATA III Anschlüsse: 2
Feature: S/PDIF aus Stecker
Feature: Audio-Anschluss
Feature: Frontpanel-Stecker
Feature: Power Fan Connector
Feature: CPU Ventilatorstecker
Anzahl der CPU-Lüfteranschlüsse: 1
Feature: Chassis Intrusion Stecker
Feature: TPM-Anschluss
Feature: RGB-LED-Stiftleiste
E/A-Anschlüsse auf der Rückseite
USB 3.2 Gen 1 (3.1 Gen 1) Anzahl der Anschlüsse vom Typ A: 7
USB 3.2 Gen 2 (3.1 Gen 2) Anzahl der Anschlüsse vom Typ A: 1
USB 3.2 Gen 2 (3.1 Gen 2) Anzahl der Anschlüsse vom Typ C: 1
Anzahl Ethernet-LAN-Anschlüsse (RJ-45): 1
Anzahl HDMI-Anschlüsse: 1
HDMI-Version: 2.1
Feature: Mikrofon-Eingang
Menge der Thunderbolt-Anschlüsse: 1
Netzwerk
Feature: Ethernet/LAN
Ethernet Schnittstellen Typ: 5 Gigabit Ethernet
Feature: WLAN
Top WLAN-Standard: Wi-Fi 7 (802.11be)
WLAN-Standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 7 (802.11be)
WLAN-Controllermodell: Killer Wi-Fi BE1750x
Feature: Bluetooth
Bluetooth-Version: 5.4
Merkmale
Motherboard Chipsatz: Intel B860
Audio Kanäle: 7.1 Kanäle
Produktfarbe: Weiß
Komponente für: PC
Motherboardformfaktor: mini ITX
Motherboard Chipsatz Familie: Intel
Energiequelle: ATX
Erweiterungssteckplätze
PCI Express x16-Steckplätze (Gen 4.x): 1
PCI Express x16-Steckplätze (Gen 5.x): 1
Anzahl der M.2 (M)-Steckplätze: 2
1. M.2 höchste PCI Express-Generation: 5.0
2. M.2 höchste PCI Express-Generation: 4.0
BIOS
Feature: Clear-CMOS-Taste
Gewicht und Abmessungen
Breite: 170 mm
Tiefe: 170 mm
Lieferumfang
Mitgelieferte Kabel: SATA
Feature: Antenne enthalten
Feature: Schrauben enthalten
