Functions at a glance
Zentrales Bedienpanel für Busch-Welcome®2-Draht und wahlweise Busch-free@home®oder Busch-Installationbus®KNX.

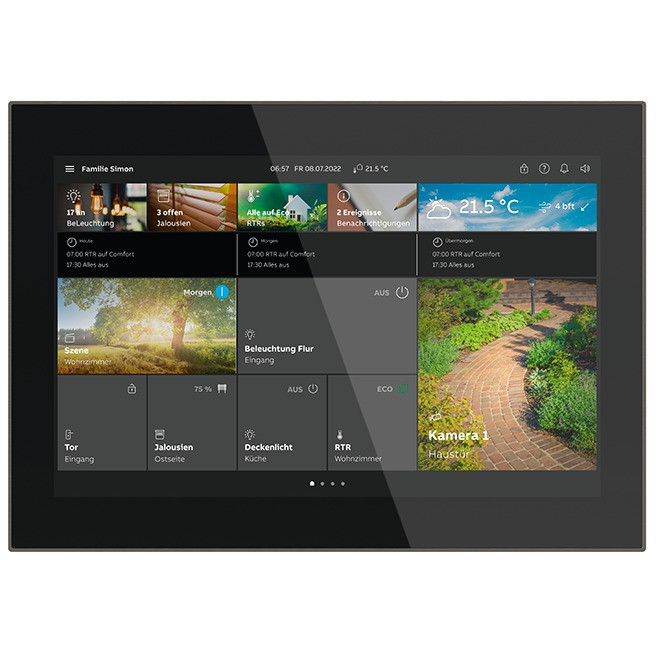

Free programmable KNX touch display as room-integrated controlling, signalling and regulating unit.
To be used as indoor video station for the ABB-Welcome door communication system.
For the illustration and operation of the following KNX standard functions:
- Switching
- Dimming
- Slider
- Blind
- RGBW control element
- Step switch
- Scene switch
- Display element
- Audio control element
With scene function, logic functions, presence simulation and time programs.
Funktionen KNX:
- 450 KNX Bedienelemente
- maximal 25 Seiten
- 80 Stör- und Alarmmeldungen
- 30 Logik Funktionen
- 40 Zeitschaltuhren
- Anwesenheitssimulation für 20 Teilnehmer
- 10 Szene-Aktoren
- 3 Objekt RTRs
Busch-free@home®:
Die Anbindung erfolgt über Twisted-Pair und bietet eine Dashboard-Seite mit maximal 18 Bedienelementen.
Über die WLAN – Netzwerkverbindung ist der gesamte free@home - Funktionsumfang verfügbar, so wie im SystemAccesspoint konfiguriert.
Ein integrierter Raumtemperaturregler und Temperaturfühler.
Equipped with a hearing loop for coupling the audio signal into hearing aids.
Seitendarstellung mit max. 18 Touchflächen auf einer Seite.
External power supply: 20-32 VDC (SELV) or via the ABB-Welcome system controller.
Verbrauchseinheiten: 14
Control element: freely programmable touch surfaces
Display elements: Capacitive touchdisplay 800 x 1280 pixel
Rated voltage: 20 V-32 V-
Protection class (device): IP 20
Temperature range (device): 0 °C - 45 °C
Storage temperature range: -20 °C - 60 °C
Transport temperature range: -20 °C - 60 °C
Dimensions: (L x W x D): 180.2 mm x 254.6 mm x 17.2 mm
Mounting depth: 14 mm
Position for installation: Horizontal
Mounting height: 150 cm
For software and description please check the current Online-Catalogue.
Zusatzsoftware BJE DCA SmartTouch 10 erforderlich.
Lieferbar ab Oktober 2022
