Functions at a glance

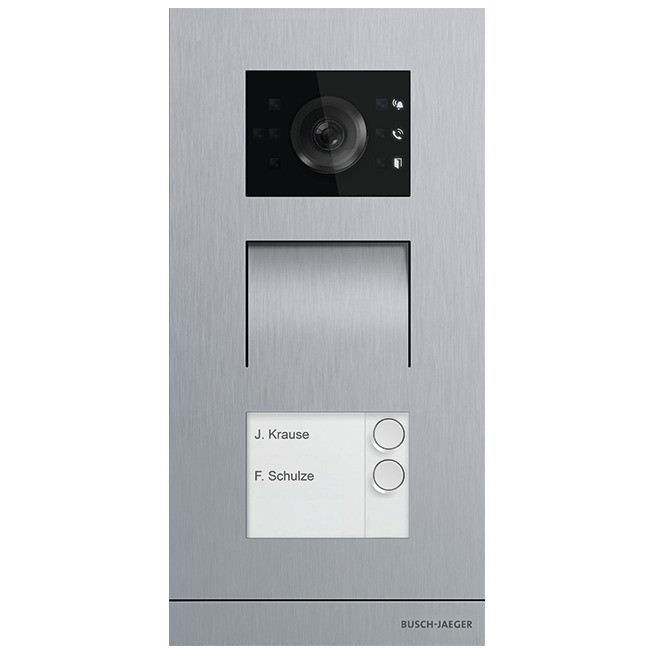

Video camera with automatic day/night switchover and infrared LEDs to illuminate the night shots.
Integrated status display via LED symbols (complies with DIN 18040).
Equipped with a hearing loop for coupling the audio signal into hearing aids.
Hands-free device and key modules are backlit.
Stamped labelling foil is enclosed.
Mounting tool is enclosed.
For flush-mounted installation with 41383F-H-03 / 41383F-B-03.
For surface-mounted installation with 41383S-B-03 / 41383S-H-03.
For mounting in plastered facades additionally with 41383PB-03.
Detection angle diagonal/horizontal/vertical: 130°/100°/70°.
Notice: The detection range of the camera is rigid and cannot be changed mechanically.
Key module is backlit.
Impact protection: IK07.
Front plate made of 3 mm stainless steel.
Consumer units: 8
Protection class (device): IP 54
Temperature range (device): -40 °C - 55 °C
Dimensions: (L x W x D): 277 mm x 135 mm x 18 mm
Additional information about commissioning and operation is contained in the system manual and the online operating manual of the current Online-Catalogue.
