Functions at a glance
For the integration into letter boxes and bell systems of different manufacturers, such as the products of Erwin Renz Metallwarenfabrik GmbH & Co KG, Boschstr. 3, 71737 Kirchberg/Murr, Germany.
The cutout must be created by the manufacturer.

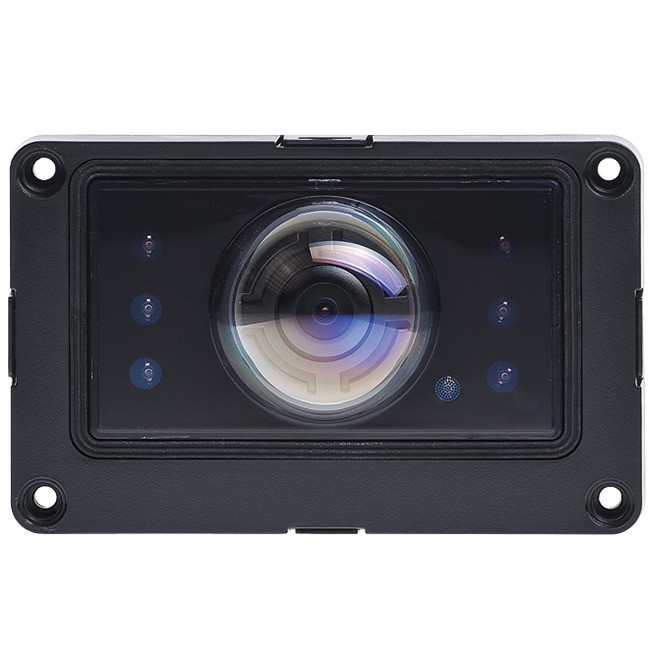

Extended audio module assembly with video function.
Video camera with automatic day/night switchover and infrared LEDs to illuminate the night shots.
Installed heating to keep the lens free of condensation.
Vertical/horizontal detection angle: 170°/135°
Consumer units: 4
For an outdoor video station it is necessary to replace the basic module 83140/xx with a new base call button module 83140/xx-101.
The current basic module 83140/xx can continue to be used with an outdoor audio station.
Temperature range (device): -25 °C - 55 °C
Dimensions: (L x W x D): 62 mm x 98 mm
