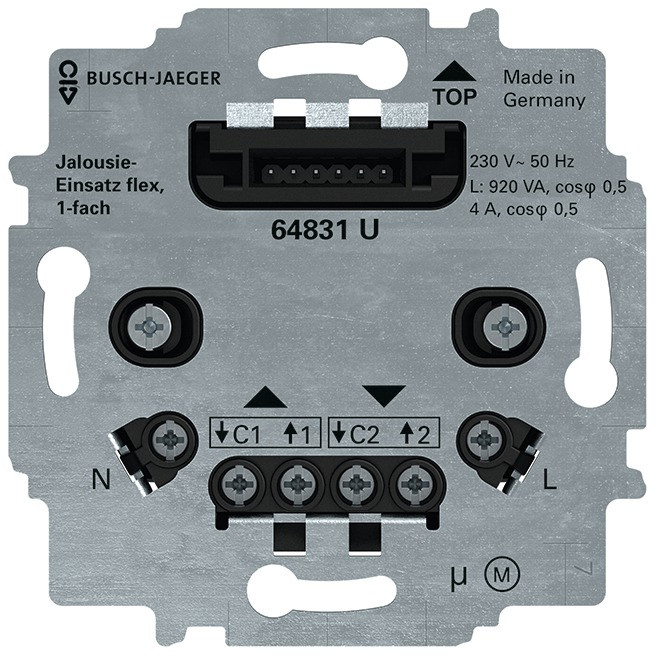

Functions at a glance
3 wire connection (neutral conductor required).
For the control of roller shutters, blind and awning motors with mechanical or electronic limit switch shut-off.
Group formation via extension input possible.
Operation also via conventional push buttons (2020 US non-illuminated/2021/6 UK) possible.
Without control cover.
For control element flex, 1gang, 64711.
For control element flex, 1gang, wireless, 62711-WL.
For control element flex, 2gang, 64721.
For control element flex, 2gang, wireless, 62721-WL.
Combinable with extension insert flex, 64891 U.
Rated voltage: 230 V~, +10 % / -10 %
Rated frequency: 50 Hz
Outputs: 2 Normally open contact, potential-bound
suitable for: Electrical drives.
Rated output: 920 W/VA
Temperature range (device): -25 °C - 55 °C
Storage temperature range: -25 °C - 70 °C
Dimensions: (L x W x D): 71 mm x 71 mm x 30 mm
Mounting depth: 25 mm
Only in conjunction with standard flush-mounting boxes according to DIN 49073, erect or Busch-Jaeger No. 3040 wallbox stonework, 3050 wallbox cavity wall or 3060 wallbox concrete)
